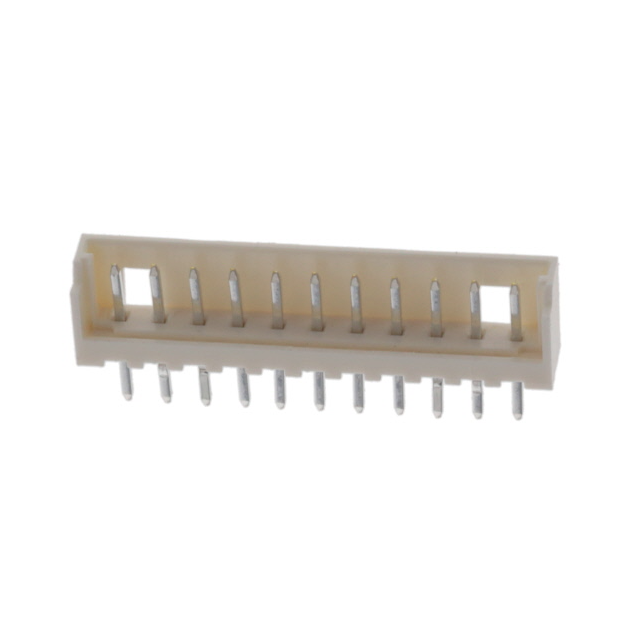

Circuits (Loaded): 11
Circuits (maximum): 11
Color – Resin: Natural
Durability (mating cycles max): 30
First Mate / Last Break: No
Glow-Wire Capable: No
Lock to Mating Part: Yes
Material – Metal: Brass
Material – Plating Mating: Tin
Material – Plating Termination: Tin
Material – Resin: Nylon
Net Weight: 416.000/mg
Number of Rows: 1
Orientation: Vertical
Packaging Type: Tray
PCB Locator: No
PCB Retention: Yes
PCB Thickness – Recommended: 1.60mm
PC Tail Length: 3.50mm
Pitch – Mating Interface: 2.00mm
Plating min – Mating: 1.016µm
Plating min – Termination: 1.016µm
Polarized to Mating Part: Yes
Polarized to PCB: No
Shrouded: Partial
Stackable: No
Temperature Range – Operating: -55° to +105°C
Termination Interface Style: Through Hole
