| Ambient temperature product | -30°C…+90°C | -30°C…+90°C |
| Connector | Female, angled, Ø8mm snap | Male, straight, Ø 8mm snap |
| Contact material | Metal, CuSn, gold-plated | Metal, CuSn, gold-plated |
| Contact-carrier material | Plastic, TPU, BK | Plastic, TPU, BK |
| Current load (at 40°C) | 4.0 A | 4.0 A |
| Degree of pollution | 3 | 3 |
| Degree of protection (mounted) | IP65, IP67, IP68 | IP65, IP67, IP68 |
| Grip body material | Plastic, TPU, BK | Plastic, TPU, BK |
| Insulation resistance | ≥108 Ω | ≥108 Ω |
| Mechanical life-cycle | >100 mating cycles | >100 mating cycles |
| Number of pins | 3 | 3 |

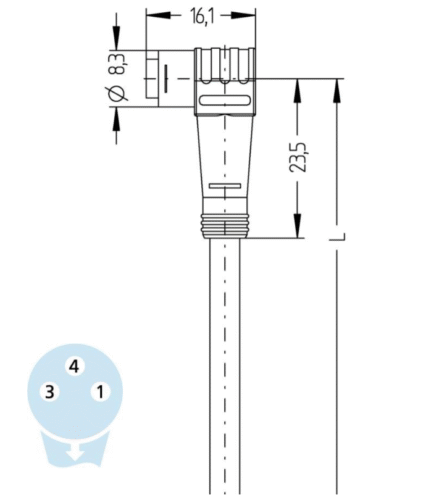

| Pin assignment | 1 BN, 3 BU, 4 BK | 1 BN, 3 BU, 4 BK |
| Rated voltage | 60V | 60V |
| Resistance | 5 mΩ | 5 mΩ |
| Sealing (female) material | FPM/FKM | |
| Standards | IEC 61076-2-104 | IEC 61076-2-104 |

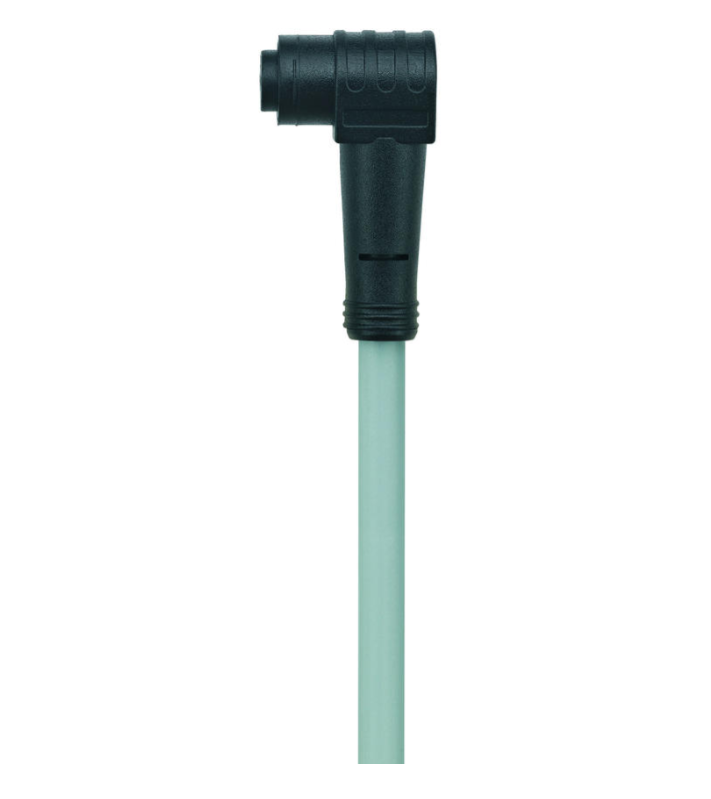

M8 3 Pinli 90 derece açılı sensör kablosu Female (Muhtelif kablo uzunluğunda)
